Descriptions

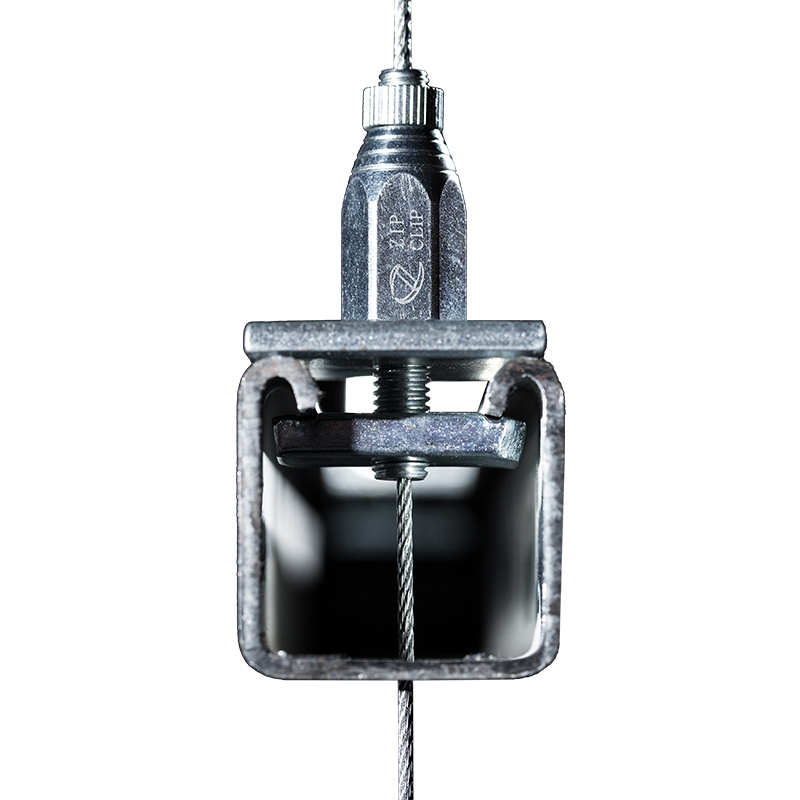

Strut-Luck is the safe, lockable solution for installing single and multi-tiered arrangements of cable management and HVAC applications.

The Specifics:

When installed as part of a wire suspension system, the Strut Lock system delivers an impressive safety factor of 3:1, with weight loading of 45kg or 90kg per wire.

The range consists of a pre-determined length of wire from 1 metre to 10 metres with a choice of safe working load:

- S 45kg SWL
- Y 90kg SWL*

*70kg for concrete suspension systems

The Applications:

- Single & multi tier trapeze brackets | Can be utilised with other channel types.
- For 41x41 & 41x21 channel | Ensure compatible channel nuts are used.

Installtion:

- Couple with Strut-Lock using a square washer and channel nut.
- Position the assembly into desired channel location.
- Tighten into position using a 15mm spanner - turn clockwise.
- Back off the locking collar - do not undo fully - depress plunger.
- Insert the wire rope through the plunger at the top of the device.
- Tighten the locking collar to lock off.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Size/Ref KG Type Pack Qty Price Quantity
27200 1m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 1m 45kg SWL Standard Loop 10
£10.70 (exc VAT) Each
27201 2m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 2m 45kg SWL Standard Loop 10
£11.20 (exc VAT) Each
27202 3m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 3m 45kg SWL Standard Loop 10
£11.70 (exc VAT) Each
27203 4m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 4m 45kg SWL Standard Loop 10
£10.97 (exc VAT) Each
27204 5m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 5m 45kg SWL Standard Loop 10
£10.16 (exc VAT) Each
27205 10m Zip Clip 'Strut-Lock' S Standard Loop SuspSys 45kg SWL 10m 45kg SWL Standard Loop 10
£16.63 (exc VAT) Each
27206 1m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 1m 90kg SWL Standard Loop 10
£10.74 (exc VAT) Each
27207 2m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 2m 90kg SWL Standard Loop 10
£11.40 (exc VAT) Each
27208 3m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 3m 90kg SWL Standard Loop 10
£12.05 (exc VAT) Each
27209 4m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 4m 90kg SWL Standard Loop 10
£12.67 (exc VAT) Each
27210 5m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 5m 90kg SWL Standard Loop 10
£13.32 (exc VAT) Each
27211 10m Zip Clip 'Strut-Lock' Y Standard Loop SuspSys 90kg SWL 10m 90kg SWL Standard Loop 10
£21.56 (exc VAT) Each
27212 1m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 1m 45kg SWL Concrete Anchor 10
£12.09 (exc VAT) Each
27213 2m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 2m 45kg SWL Concrete Anchor 10
£10.55 (exc VAT) Each
27214 3m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 3m 45kg SWL Concrete Anchor 10
£10.97 (exc VAT) Each
27215 4m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 4m 45kg SWL Concrete Anchor 10
£11.40 (exc VAT) Each
27216 5m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 5m 45kg SWL Concrete Anchor 10
£11.78 (exc VAT) Each
27217 10m Zip Clip 'Strut-Lock' S Concrete Susp Sys 45kg SWL 10m 45kg SWL Concrete Anchor 10
£13.90 (exc VAT) Each
27218 1m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 70kg SWL 1m 70kg SWL Concrete Anchor 10
£12.09 (exc VAT) Each
27219 2m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 70kg SWL 2m 70kg SWL Concrete Anchor 10
£12.71 (exc VAT) Each
27220 3m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 70kg SWL 3m 70kg SWL Concrete Anchor 10
£13.36 (exc VAT) Each
27221 4m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 70kg SWL 4m 70kg SWL Concrete Anchor 10
£13.98 (exc VAT) Each
27222 5m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 90kg SWL 5m 70kg SWL Concrete Anchor 10
£14.63 (exc VAT) Each
27223 10m Zip Clip 'Strut-Lock' Y Concrete Susp Sys 90kg SWL 10m 70kg SWL Concrete Anchor 10
£17.83 (exc VAT) Each
27224 1m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 1m 45kg SWL Threaded Loop 10
£12.09 (exc VAT) Each
27225 2m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 2m 45kg SWL Threaded Loop 10
£11.20 (exc VAT) Each
27226 3m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 3m 45kg SWL Threaded Loop 10
£13.09 (exc VAT) Each
27227 4m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 4m 45kg SWL Threaded Loop 10
£11.40 (exc VAT) Each
27228 5m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 5m 45kg SWL Threaded Loop 10
£11.78 (exc VAT) Each
27229 10m Zip Clip 'Strut-Lock' S Threaded Loop SuspSys 45kg SWL 10m 45kg SWL Threaded Loop 10
£13.90 (exc VAT) Each
27230 1m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 1m 90kg SWL Threaded Loop 10
£12.09 (exc VAT) Each
27231 2m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 2m 90kg SWL Threaded Loop 10
£12.71 (exc VAT) Each
27232 3m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 3m 90kg SWL Threaded Loop 10
£13.36 (exc VAT) Each
27233 4m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 4m 90kg SWL Threaded Loop 10
£13.98 (exc VAT) Each
27234 5m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 5m 90kg SWL Threaded Loop 10
£14.63 (exc VAT) Each
27235 10m Zip Clip 'Strut-Lock' Y Threaded Loop SuspSys 90kg SWL 10m 90kg SWL Threaded Loop 10
£17.83 (exc VAT) Each
