Zip Clip Try-Lock

Designed to suspend services from a single point suspension, these Try-Lock clips work in conjunction with standard Zip-Clip suspensions to support from a variety of different base materials. The range consists of two pre-determined lengths of wire with snap gate carabiners forming the termination points.

The Specifics:

The range consists of a predetermined length of wire to support basket and tray with the following Safe Working Load:

- S 50kg

Designed to be used in conjunction with:
-  Rize, Zip-Lock, Loop-It, Con-Lock, Dec-Lock, Shot-Lock and Uni-Lock.

The Applications

Suitable for suspending containment and bracketry:
- Cable Basket
- Cable Tray
- Channel Supports
- Chilled Beams
- Radiant Heat Panels
- Long Suspensions
- Plenum Boxes

The Technical Information

- Reduces the use of studding and channel
- One fixing point per drop
- Allows for side loading
- Height can be adjusted at basket and not at fixing
- Can be fixed to basket at ground level
- Plastic protection sleeve preventing wire on wire friction
- 5 x 50 BZP carabiner hook
- Eyelets prevent accidental un-hooking of carabiner from wire
- High tensile galvanised wire 1960 N/mm2 grade 7 x 7 construction
- BSEN 12385 Standard

Installation

- The attachment of the Try-Lock system can be done at ground level

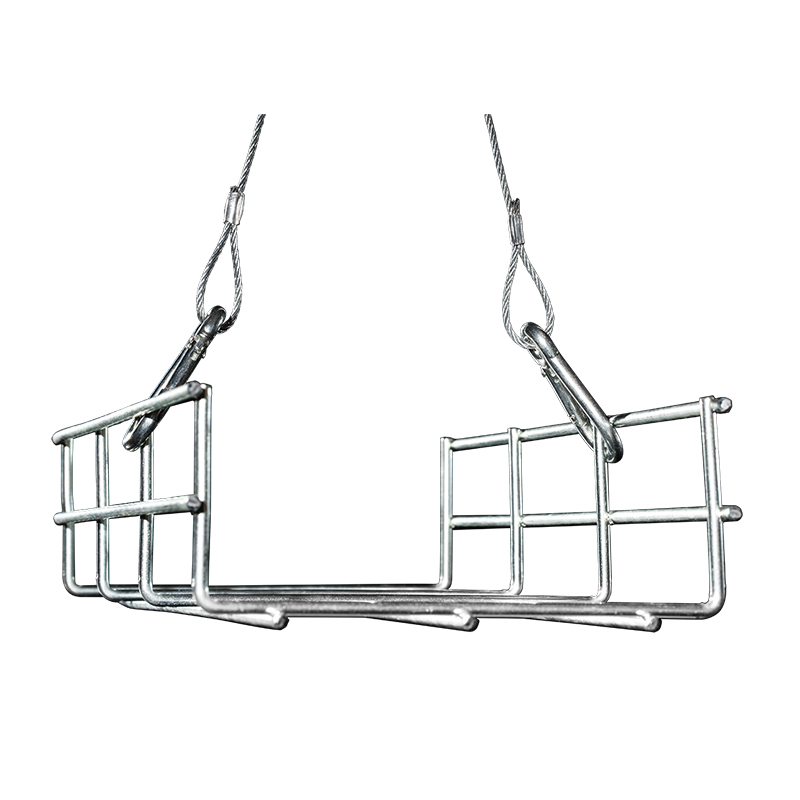

- Clip the carabiner to one side of the basket or cable tray
- Clip the other carabiner to the other side of the basket or cable tray
- Pass the free end of the wire from your top suspension through the zip-clip in the direction of the arrow
- Pass through the plastic protected loop of the Try-Lock and back through the zip-clip allowing 15cm of wire protruding
- Legs should not exceed 60 degrees
