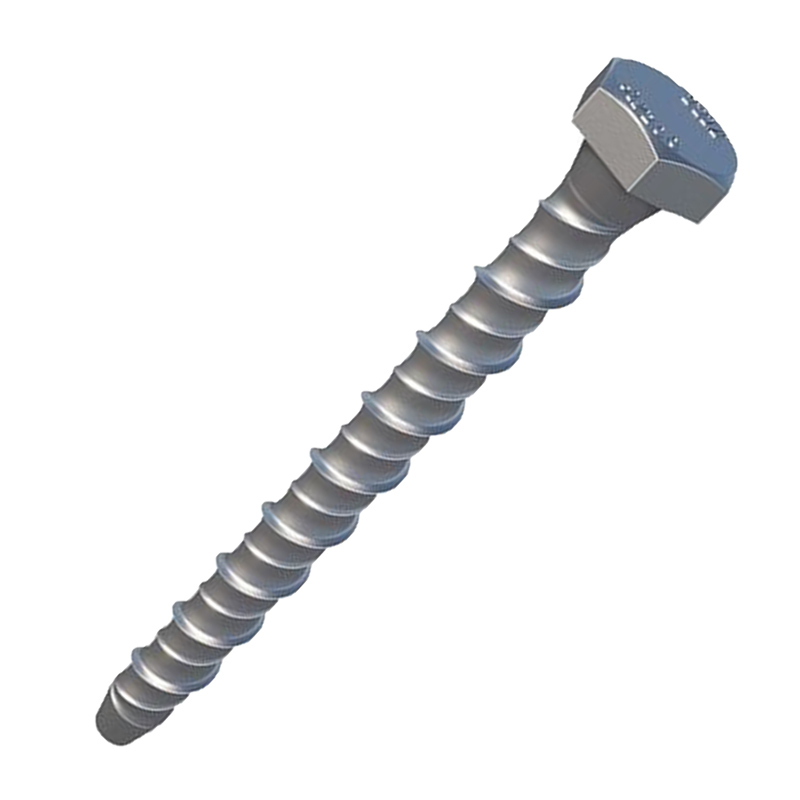

M6x75mm MultiFix Anchor Bolt Heavy Duty Non-Expansion

Stock Code: 03651
£59.75 (exc VAT) per 100
In Stock for Next Day Delivery
This product must be ordered in multiples of 100
Quantity:
-
+

This anchor has a unique patented concave thread design that taps its own thread and provides a rapid, low torque installation with exceptional pull-out resistance.
It also allows the user to adjust or remove the bolt ensuring a secure and accurate installation.  This stress-free, non-expansion through fixing is the new solution for heavy-duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.  This fixing has Micro Plating technology that gives a higher resistance to corrosion and enhances speed of installation.  High Low Parallel Threads for ease and high pull-out values.

Significantly reduces the installation time for service channel and bracketry, providing a secure fixing that can easily be removed when necessary.

Size/RefM6x75
Drill Diameter (mm)6
Maximum Fixing Thickness45
Bolt Diameter8
Drive Type10
Pack Qty100
